This meter combines with the cable tracing and cable length measuring functions. The advantage of this meter is the long-tracing distance clear sound signals rapid and precise cable length measurement. The meter is a practical tool for laboratories, factories, radio lover network installers and technicians. It can real-time measure network cable length, short circuit and circuit break. The cable tracing function can quickly and efficiently find the target cable in a large number of cables. This function can be used in telephone systems, computers networks, BNC cables and other metal network cables.
Cable Tracing Function: The cable tracing function can quickly and efficiently find the target cable in large number of cables. This function can be used in telephone systems, computers networks, BNC cables and other metal network cables.

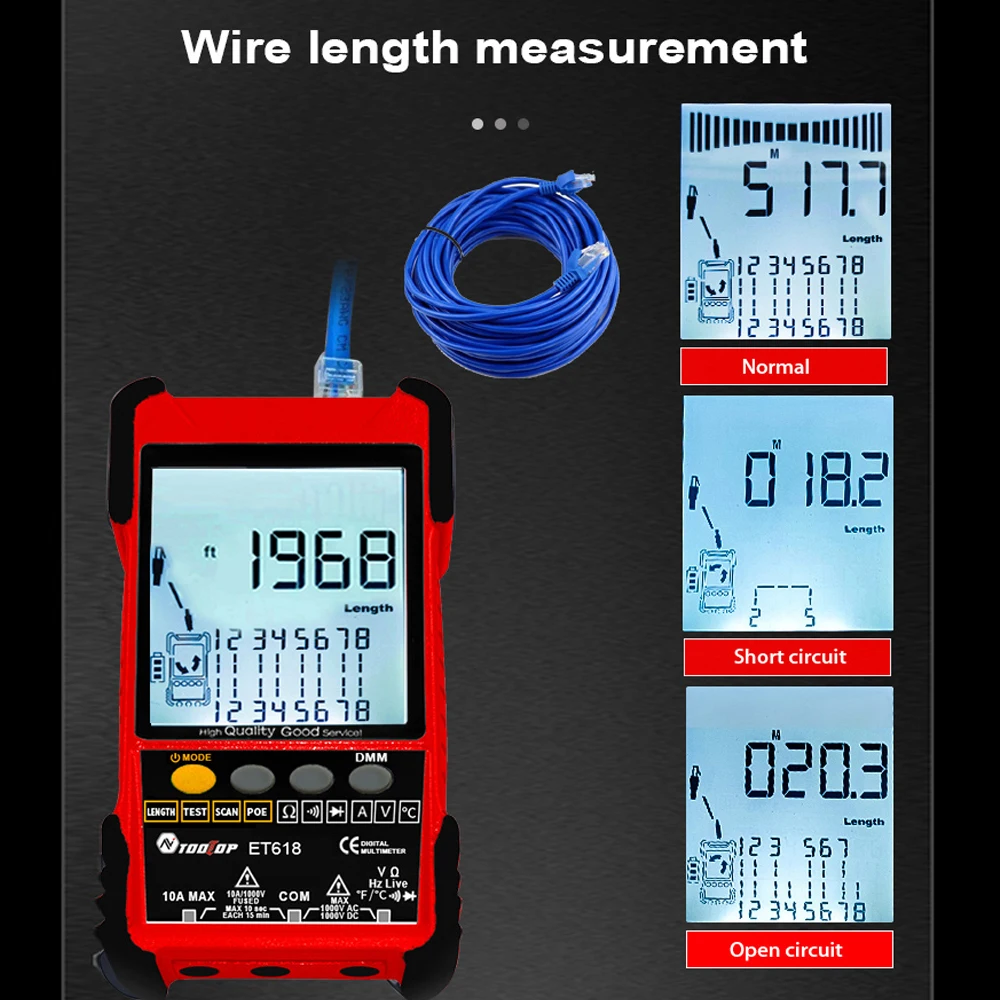

Cable Length Test: This function can apply to different metal cables with at least 2 cores including network cables, telephone lines and BNC cables. With the network cable length measuring ranges of 600M.
POE Test: POE testing can check cable mapping polarity and voltage of POE network switches.
Multifunctional Cable Tester: This cable tester has the function of analogue tracing, cable mapping, PoE voltage measuring, digital tracing sensitivity adjustable, etc.
LCD Display with Flashlight: The sender of this line finder adopts a large LCD display screen to give you a better experience and the flashlight allows you to turn it on when the light is low.
Multimeter Function: This function includes direct current and AC voltage and current measurement, resistance, continuity, diode, temperature measurement.

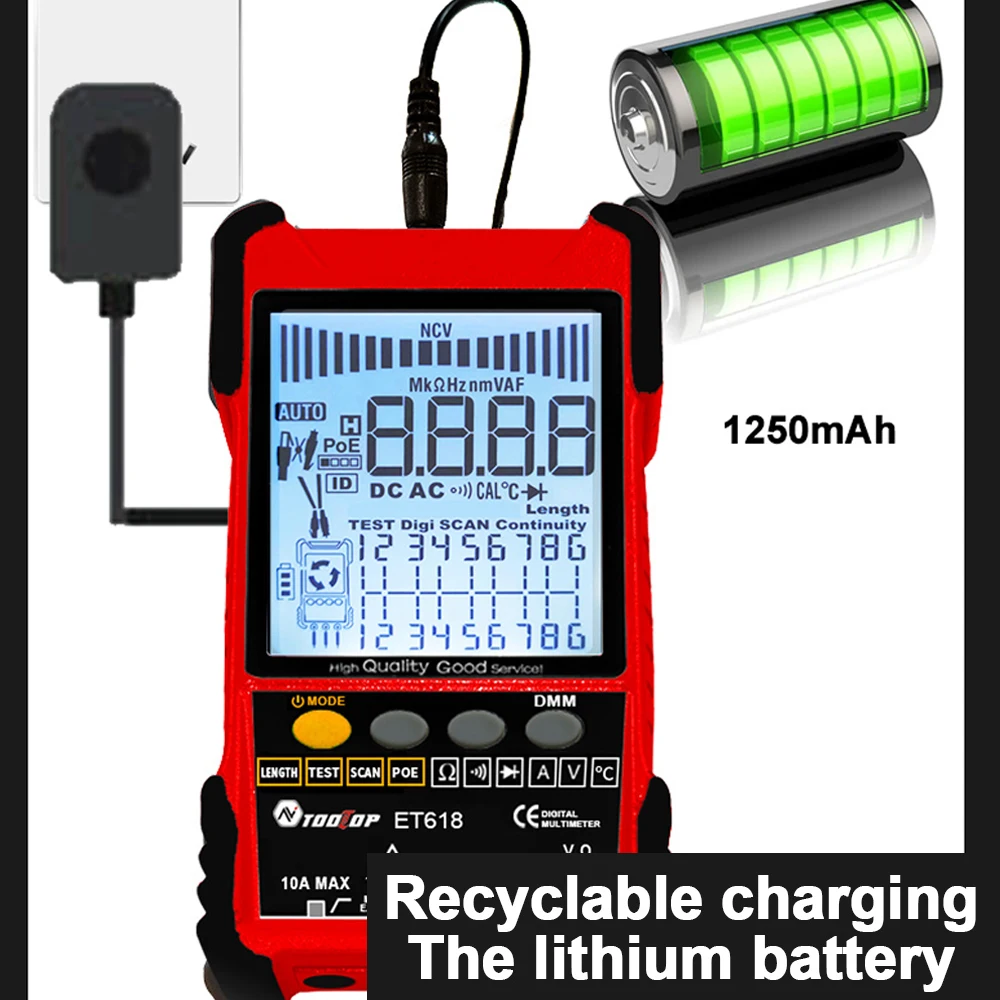

Host: built-in lithium battery, 1250mAh (included)
Receiver: 1 * 9V battery (NOT INCLUDED)
Analogue tracing: √
Continuity: By Multimeter function
Switch tracing ( w/PoE): √
Cable mapping: √
Switch indicators flashing: √

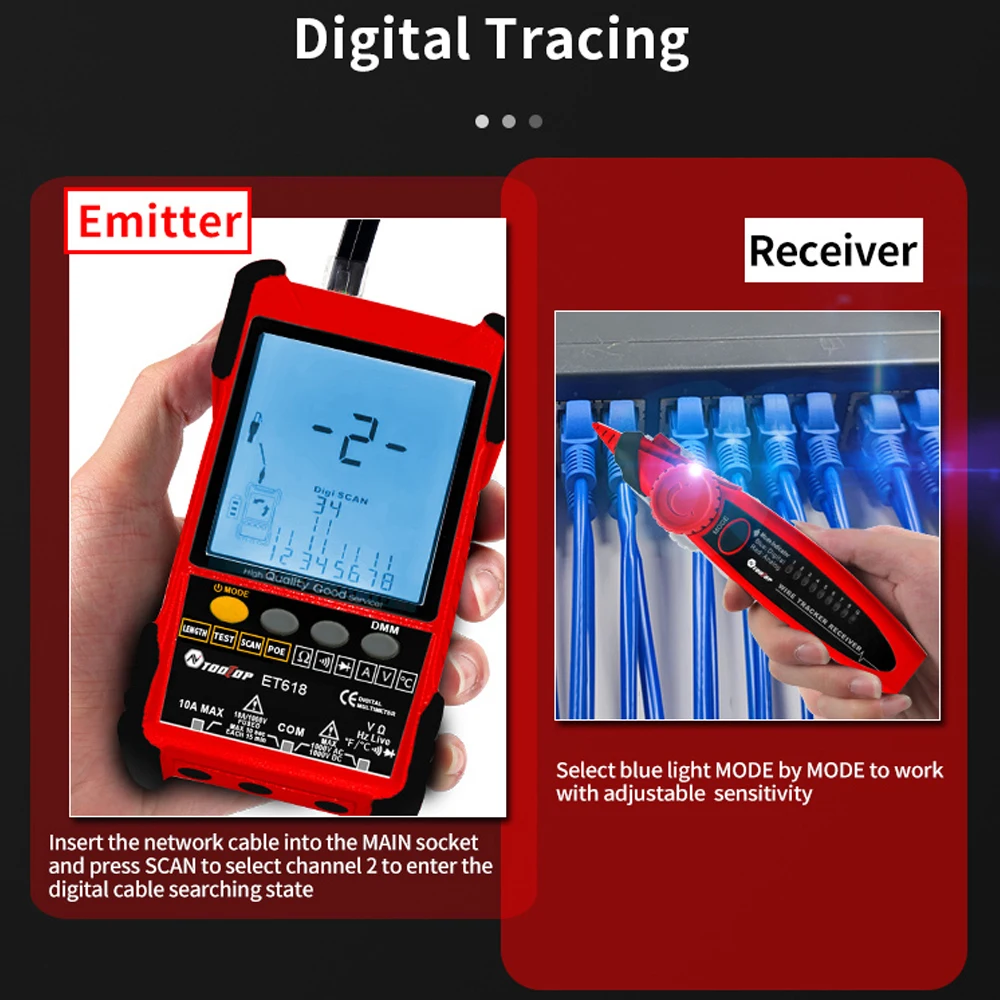

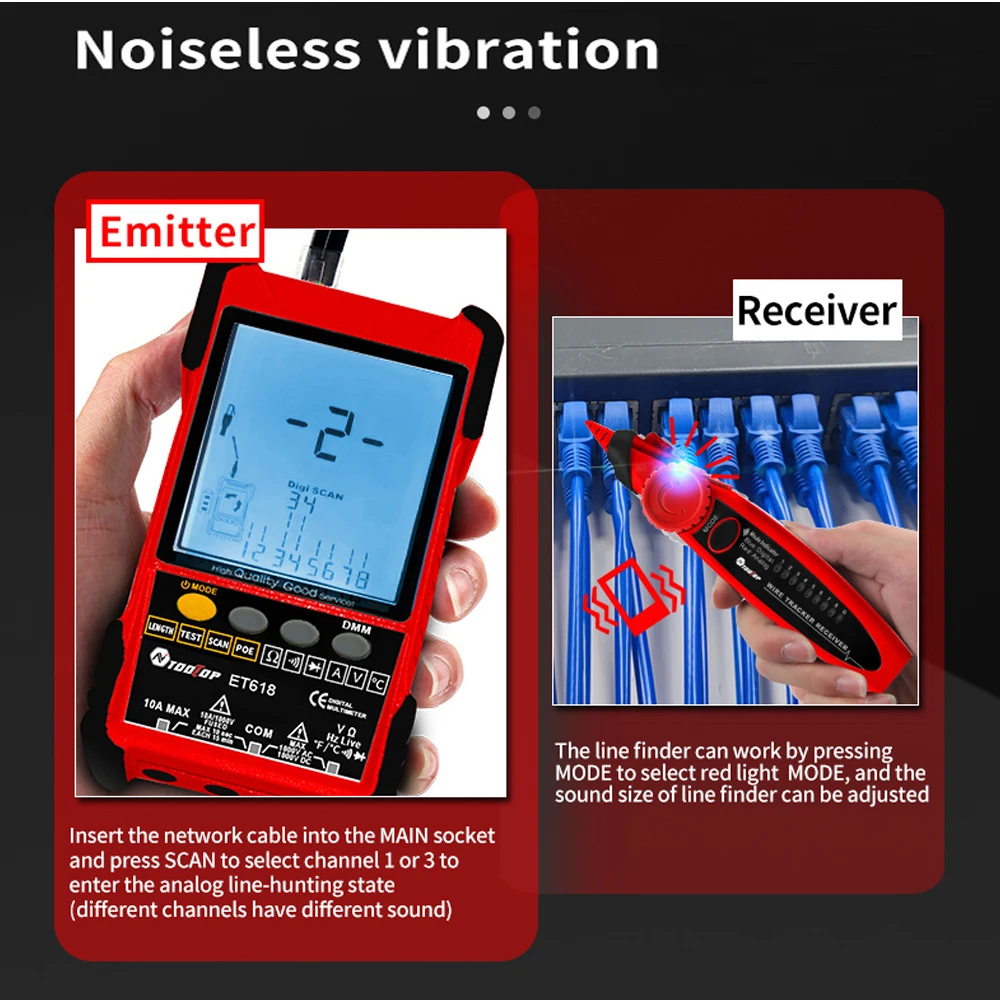

Noisy free digital tracing: Digital/Vibration
PoE voltage measuring: voltage/polarity

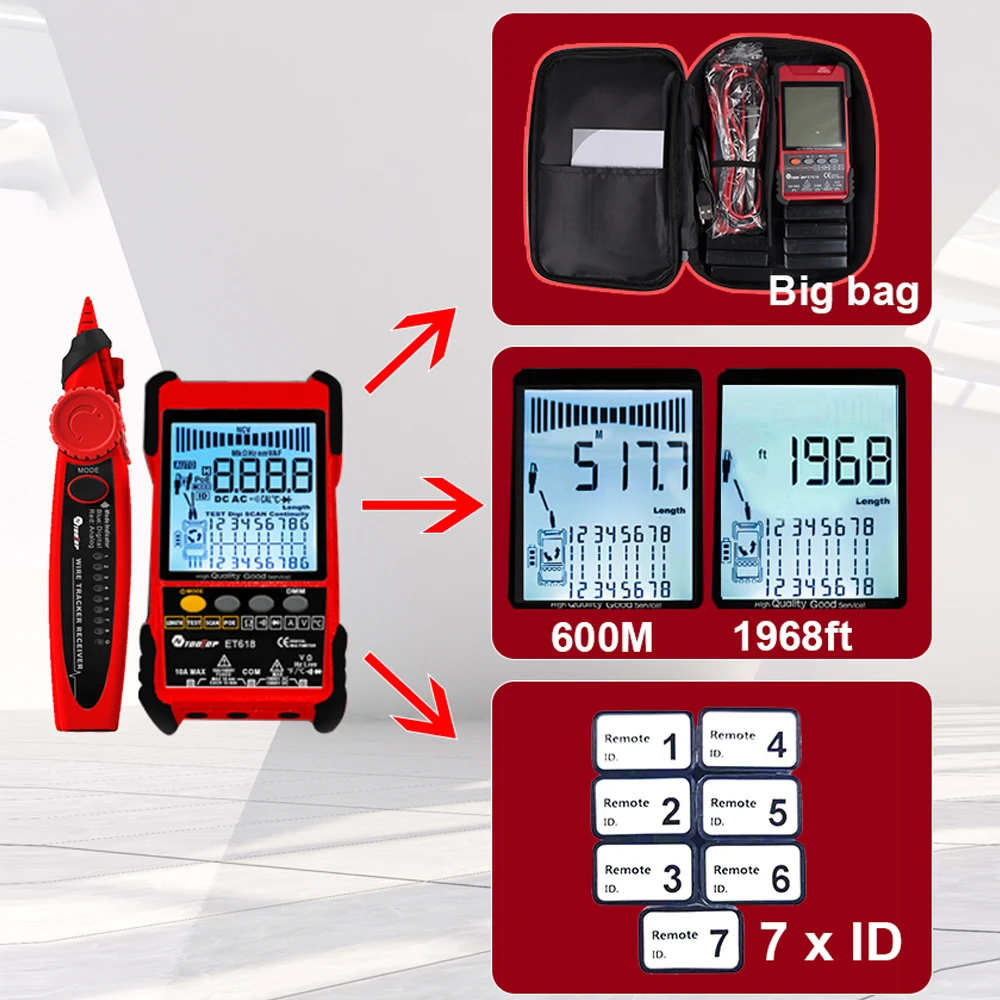

Remote identity mapping: 7XID
Analogue bargraph: √
NCV detection: √
Network Cable Length Measure: 600M
Other Functions: Main Body flashlight, multimeter input jack indicator, LCD display, white flashlight, analogue tracing sound adjustable, digital tracing sensitivity adjustable, low battery indicator, white backlight, energy saying, tracing distance 3km, analoguetracing sianal selectable
Direct current voltage: 400mV~1000V±(0.8%+3)
AC Voltage: 4V~400V±(1.5%+5)
Direct current current: 1.0A~10.0A±(1.2%+4)
AC Current: 1.0A ~10.0A±(2.0%+5)
Resistance: 200Ω ~20MΩ±(2%+6)
Continuity: < 50Ω buzzers beeps
Temperature(k type): -20~1000°C±(2.0%+15)
Package size: 255 * 163.8 * 60.7mm / 10.04 * 6.45 * 2.39in
Package weight: 770g / 1.70lb
The ID pairing function is implemented with remote ID mapping accessory, you need to buy this accessory by yourself
separately, This accessory is not included in this set.

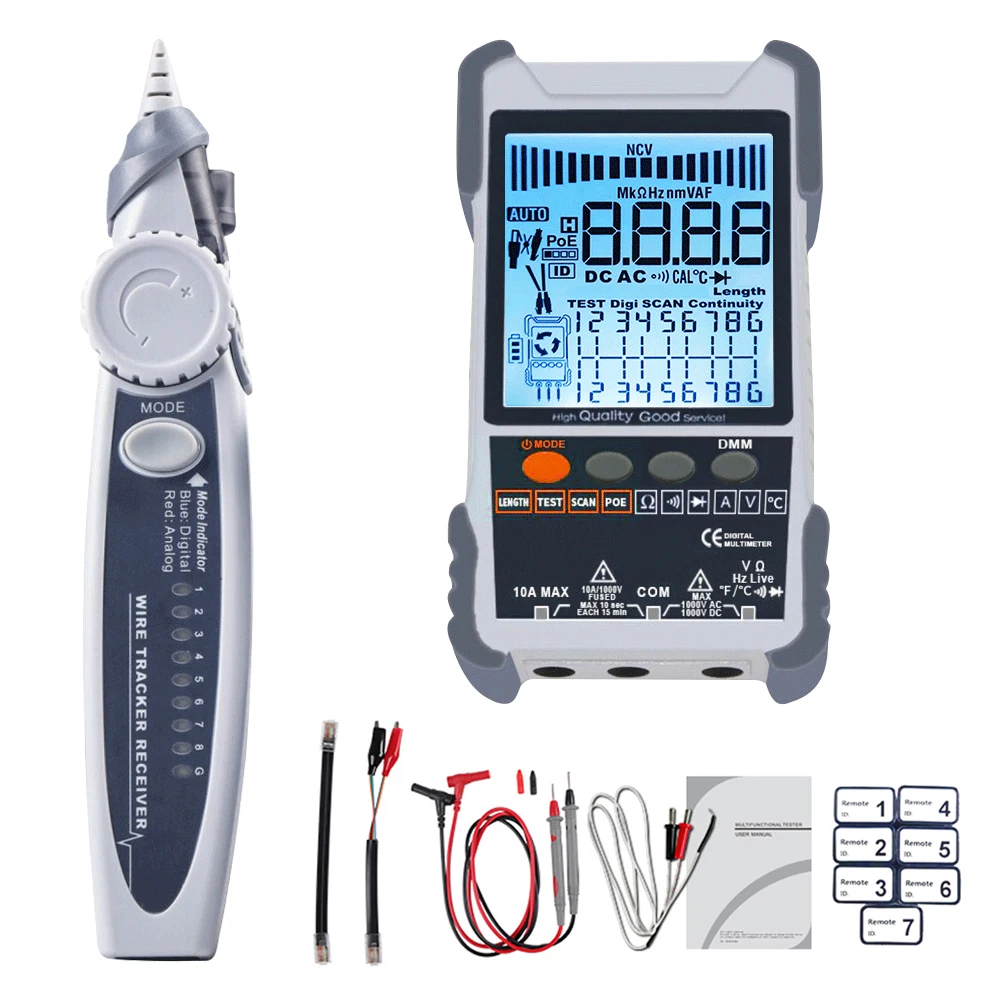

1 * Host
1 * Receiver
1 * User Manual
1 * Testing Clip Line
1 * Network Cable
1 * Recharging Line
1 * Temperature Probes
1 * Multimeter Probes
1 * Storage Bag
