TOOLTOP ET616/ET618 Network Cable Tester LCD Display Analog Digital Search POE Cable Pairing Length Wiremap Detector Multimeter

TOOLTOP ET616 ET618 Network Cable Tester LCD Display Analog Digital Search POE Cable Pairing Length WiremapTOOLTOP ET616 ET618 Network Cable Tester LCD Display Analog Digital Search POE Cable Pairing Length WiremapTOOLTOP ET616 ET618 Network Cable Tester LCD Display Analog Digital Search POE Cable Pairing Length WiremapTOOLTOP ET616 ET618 Network Cable Tester LCD Display Analog Digital Search POE Cable Pairing Length WiremapTOOLTOP ET616 ET618 Network Cable Tester LCD Display Analog Digital Search POE Cable Pairing Length WiremapTOOLTOP ET616 ET618 Network Cable Tester LCD Display Analog Digital Search POE Cable Pairing Length Wiremap
Price: [price_with_discount]

ISRHEWs

TOOLTOP ET616/ET618 Network Cable Tester LCD Display Analog Digital Search POE Cable Pairing Length Wiremap Detector Multimeter

S76595e5a42934e50a8fd5e00d43cefeeJ
S1af971e740a741d2a76638c5efed0d57w
Sac0a8a7f033d49daac8a98db071fcbdfZ
S5253071973194d2d864eb9acdb7ef0e6K
S6290edf1ebe84a25a70c7991a9dc4a06e
Sa0b13f5fc3d1407e9595e032a4395912P
S276ac17404bd49c7a1983e8d293dc6bau
Sa750336228504e84a4ccc3f6d88e1934F
S1663f2dac6be42f39d2f3829bf4bb81bO
S03a5354e34ab4bcdba215f1174ff220ap
Sa7dda481991f42bfbaa72cb09b0c9de7a
S36f3f1ae2c83466f978842d908e9bf9ff
Sa06e78a2095445cb878c0c1d5fea7b67w
S226de59bd4a24a48b9525c81f9bb2521m
Scdf032bd180a427480b6a22aa0485faas
S25d09c6bd1084a89bda1723120eccd3f0
S1e7e3c7cb74d415b9f5c977e1eb9f03ef
Se9c0544a26df40728a0bc0ae50b03b522
S784e789cc09f47d2b416a3a3b81cd17ez

Description:

This meter combines with the cable tracing and cable length measuring functions. The advantage of this meter is the long-tracing distance clear sound signals rapid and precise cable length measurement. The meter is a practical tool for laboratories, factories, radio lover network installers and technicians. It can real-time measure network cable length, short circuit and circuit break. The cable tracing function can quickly and efficiently find the target cable in a large number of cables. This function can be used in telephone systems, computers networks, BNC cables and other metal network cables.

Features:

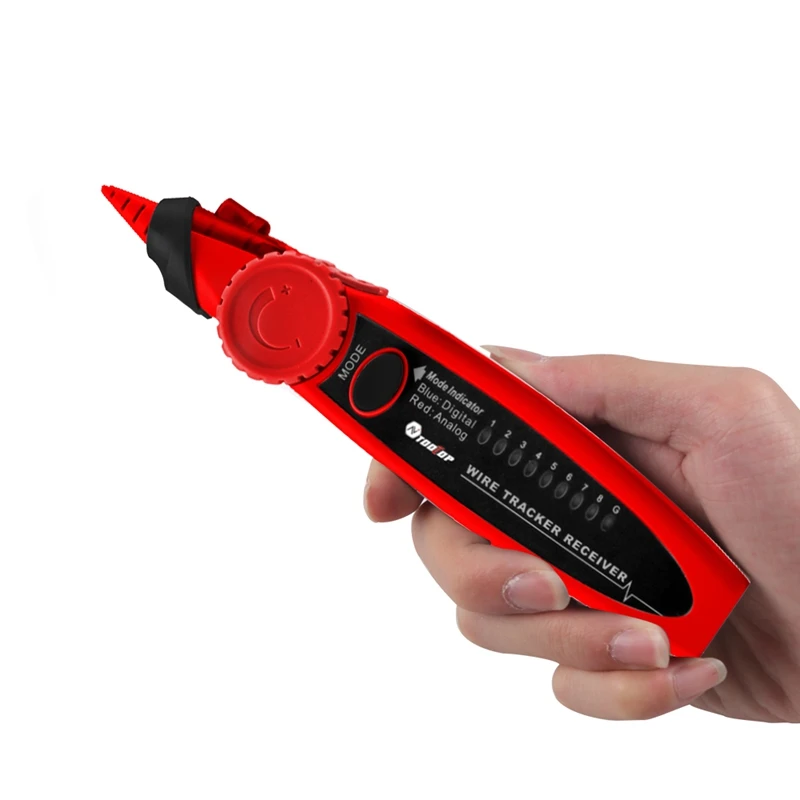

Cable Tracing Function: The cable tracing function can quickly and efficiently find the target cable in large number of cables. This function can be used in telephone systems, computers networks, BNC cables and other metal network cables.
Cable Length Test: This function can apply to different metal cables with at least 2 cores including network cables, telephone lines and BNC cables.
POE Test: POE testing can check cable mapping polarity and voltage of POE network switches.
Multifunctional Cable Tester: This cable tester has the function of analogue tracing, cable mapping, PoE voltage measuring, digital tracing sensitivity adjustable, etc.
LCD display with Flashlight: The sender of this line finder adopts a large LCD display screen to give you a better experience and the flashlight allows you to turn it on when the light is low.
Multimeter Function: This function includes direct current and AC voltage and current measurement, resistance, continuity, diode, temperature measurement(Only ET618).

ET616/ET618 Optional: There are two different types for you to choose. The network cable length measuring ranges of ET616 is 400M, and the ranges of ET618 is 500M. Only ET618 has the multimeter functions.

Specifications:

Material: ABS
Type: ET616/ET618(optional)
Analogue tracing: √
Switch tracing ( w/PoE): √
Cable mapping: √
Switch indicators flashing: √
Noisy free digital tracing:
ET616: Digital
ET618: Digital/Vibration
PoE voltage measuring: voltage polarity
Analogue bargraph: √
NCV detection: √
Network Cable Length Measure:
ET616: 400M
ET618: 500M
Power:
Host: built-in lithium battery, 1250mAh (included)
Receiver: 1 * 9V battery (NOT INCLUDED)
Package size: 218 * 158 * 50mm / 8.6 * 6.2 * 2.0in
Package weight:
ET616: 490g / 1.1lb
ET618: 585g / 1.3lb

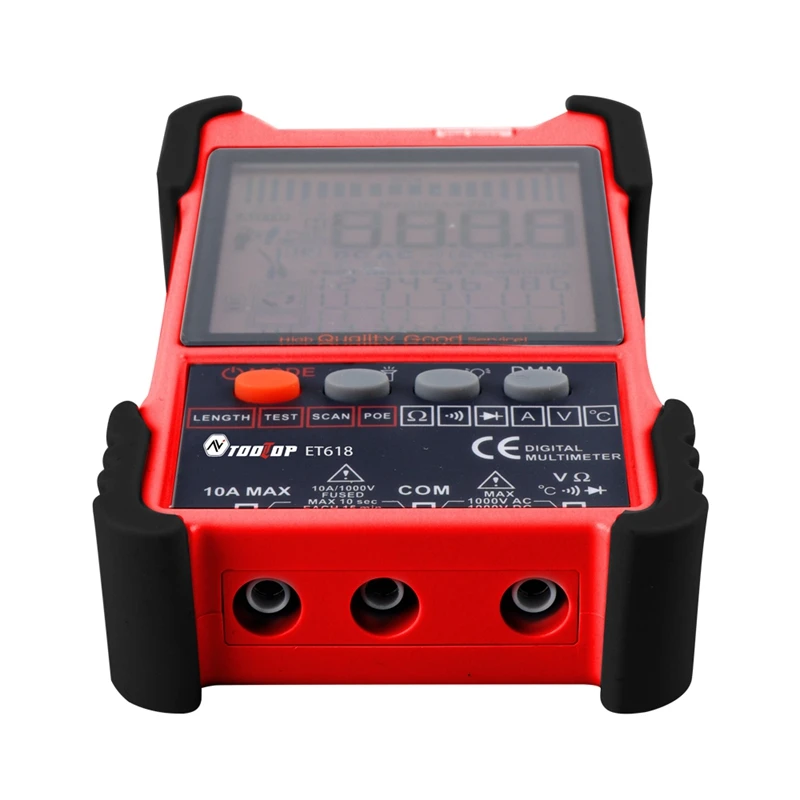

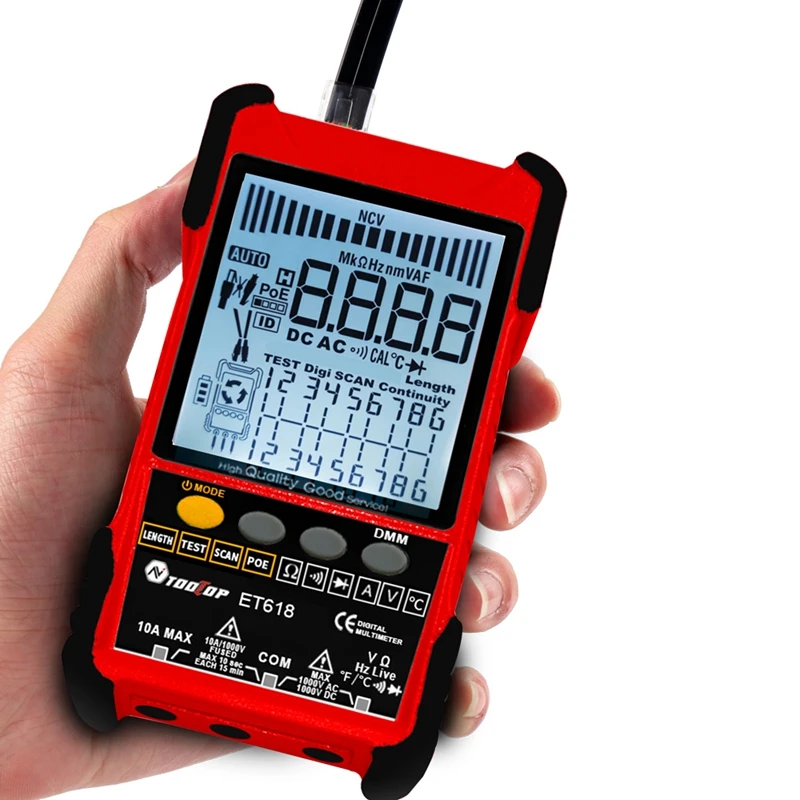

Multimeter Specifications (only ET618):

Direct current voltage: 400mV~1000V±(0.8%+3)
AC Voltage: 4V~400V±(1.5%+5)
Direct current current: 1.0A~10.0A±(1.2%+4)
AC Current: 1.0A ~10.0A±(2.0%+5)
Resistance: 200Ω ~20MΩ±(2%+6)
Continuity: < 50Ω buzzers beeps
Diode: √
Temperature(k type): -20~1000°C±(2.0%+15)

NOTE:

The ID pairing function is implemented with remote ID mapping accessory, you need to buy this accessory by yourself separately, This accessory is not included in this set.

ET616 Packing list:

1 * Host
1 * Receiver
1 * User Manual
1 * Clip Line
1 * Network Cable
1 * Recharging Line
1 * Storage Bag

ET618 Packing list:

1 * Host
1 * Storage Bag
1 * Receiver
1 * User Manual
1 * Clip Line
1 * Network Cable
1 * Recharging Line
1 * Temperature Probes
1 * Multimeter Probes
