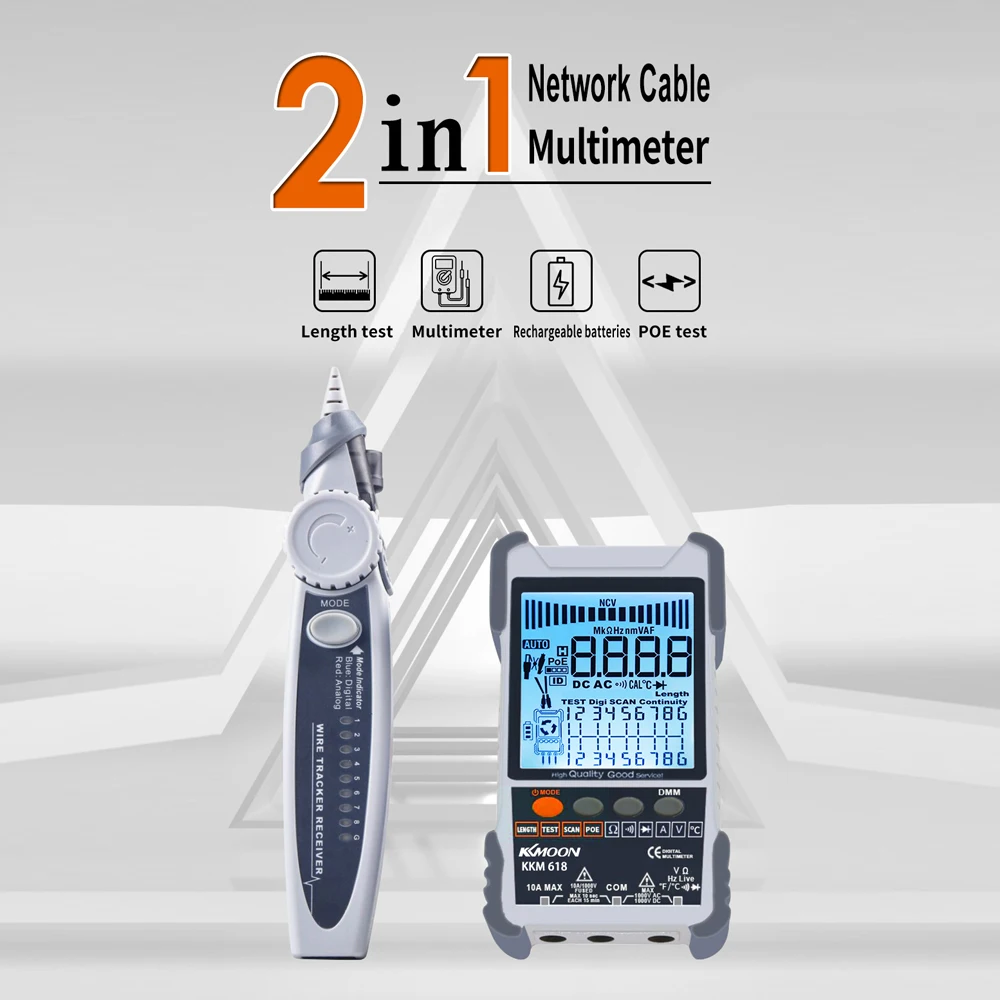

This meter combines with the cable tracing and cable length measuring functions. The advantage of this meter is the long-tracing distance clear sound signals rapid and precise cable length measurement. The meter is a practical tool for laboratories, factories, radio lover network installers and technicians. It can real-time measure network cable length, short circuit and circuit break. The cable tracing function can quickly and efficiently find the target cable in a large number of cables. This function can be used in telephone systems, computers networks, BNC cables and other metal network cables.
Features:
Cable Tracing Function: The cable tracing function can quickly and efficiently find the target cable in large number of cables. This function can be used in telephone systems, computers networks, BNC cables and other metal network cables.
Cable Length Test: This function can apply to different metal cables with at least 2 cores including network cables, telephone lines and BNC cables.
POE Test: POE testing can check cable mapping polarity and voltage of POE network switches.
Multifunctional Cable Tester: This cable tester has the function of analogue tracing, cable mapping, PoE voltage measuring, digital tracing sensitivity adjustable, etc.

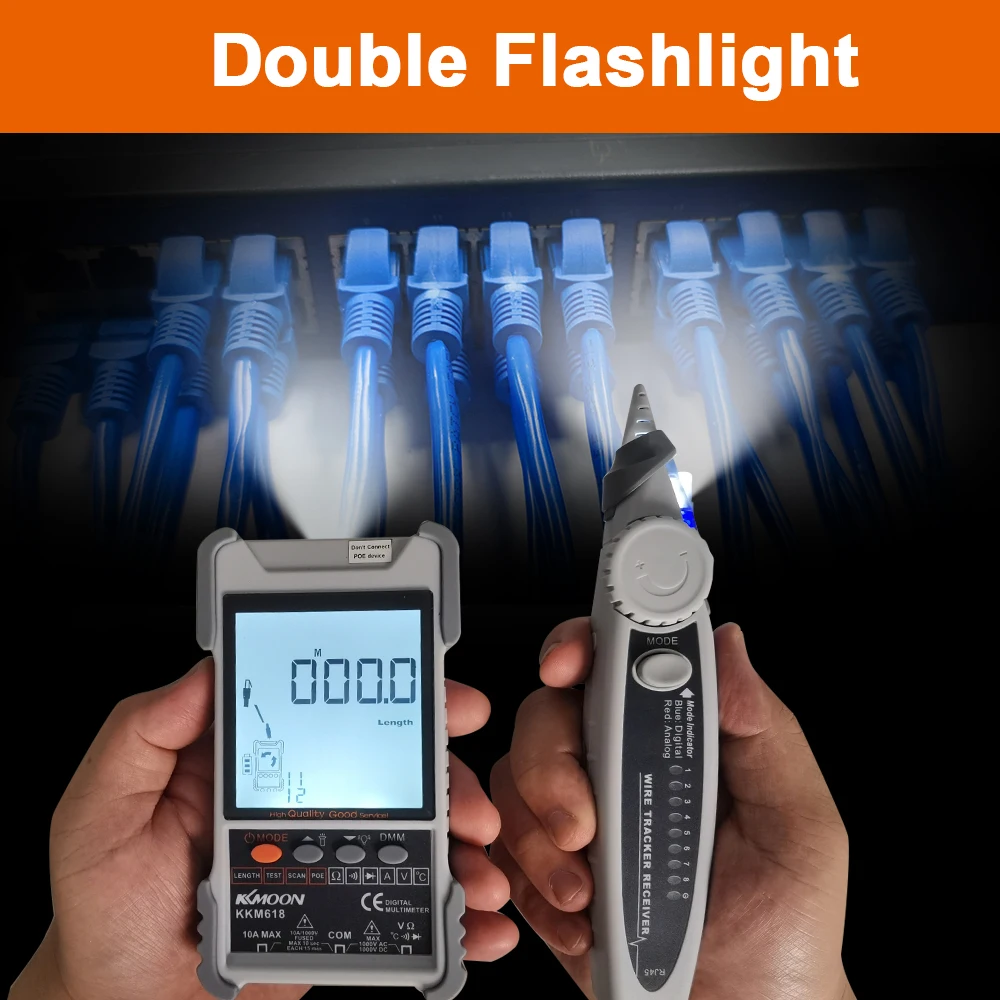

LCD display with Flashlight: The sender of this line finder adopts a large LCD display screen to give you a better experience and the flashlight allows you to turn it on when the light is low.
Multimeter Function: This function includes direct current and AC voltage and current measurement, resistance, continuity, diode, temperature measurement(Only KKM618).
KKM616/KKM618 Optional: There are two different types for you to choose. The network cable length measuring ranges of KKM616 is 400M, and the ranges of KKM618 is 500M. Only KKM618 has the multimeter functions.
Specifications:
Material: ABS
Type: KKM616/KKM618(optional)
Analogue tracing: √
Switch tracing ( w/PoE): √
Cable mapping: √
Switch indicators flashing: √
Noisy free digital tracing:
KKM616: Digital
KKM618: Digital/Vibration
PoE voltage measuring: voltage polarity
Analogue bargraph: √
NCV detection: √
Network Cable Length Measure:
KKM616: 400M
KKM618: 500M
Power:
Host: built-in lithium battery, 1250mAh (included)
Receiver: 1 * 9V battery (NOT INCLUDED)
Package size: 218 * 158 * 50mm / 8.6 * 6.2 * 2.0in
Package weight:
KKM616: 490g / 1.1lb
KKM618: 585g / 1.3lb

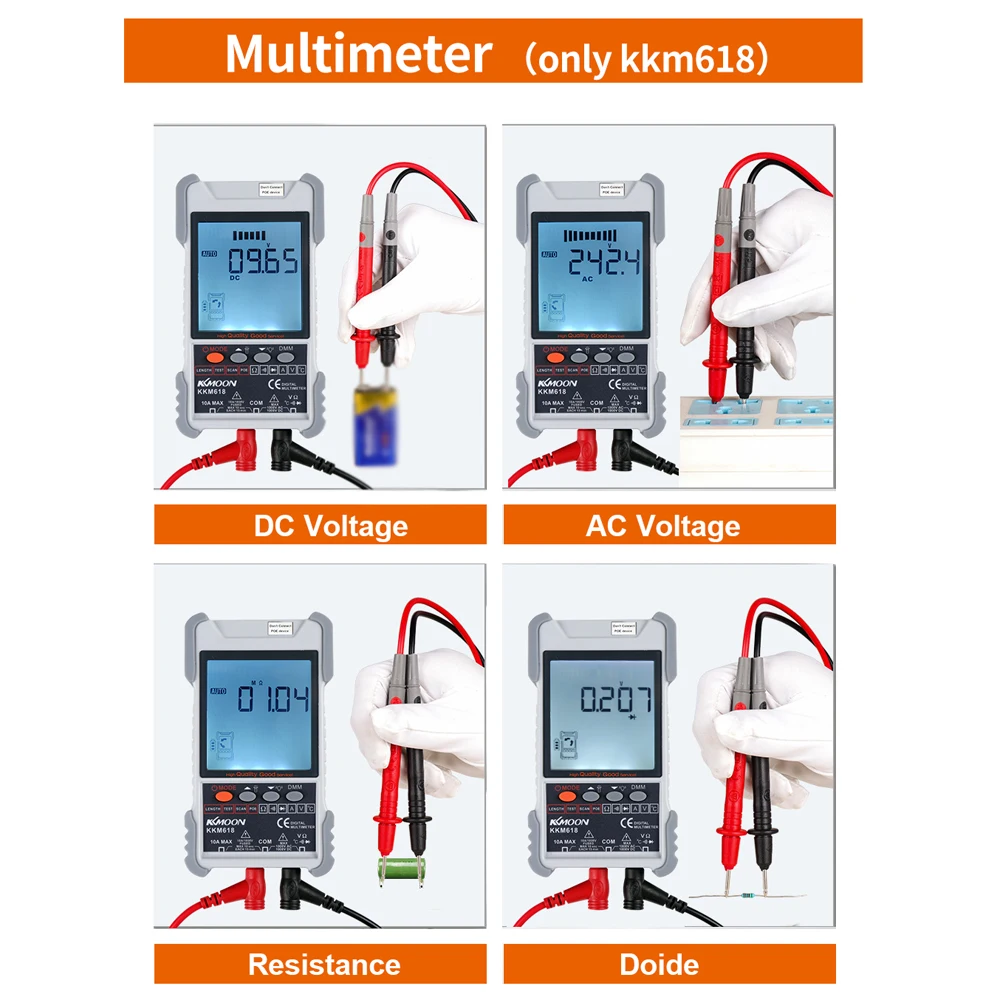

Multimeter Specifications (only KKM618):
Direct current voltage: 400mV~1000V±(0.8%+3)
AC Voltage: 4V~400V±(1.5%+5)
Direct current current: 1.0A~10.0A±(1.2%+4)
AC Current: 1.0A ~10.0A±(2.0%+5)
Resistance: 200Ω ~20MΩ±(2%+6)
Continuity: < 50Ω buzzers beeps
Diode: √
Temperature(k type): -20~1000°C±(2.0%+15)
KKM616 Packing list:
1 * Host
1 * Receiver
1 * User Manual
1 * Clip Line
1 * Network Cable
1 * Recharging Line
1 * Storage Bag
KKM618 Packing list:
1 * Host
1 * Storage Bag
1 * Receiver
1 * User Manual
1 * Clip Line
1 * Network Cable
1 * Recharging Line
1 * Temperature Probes
1 * Multimeter Probes

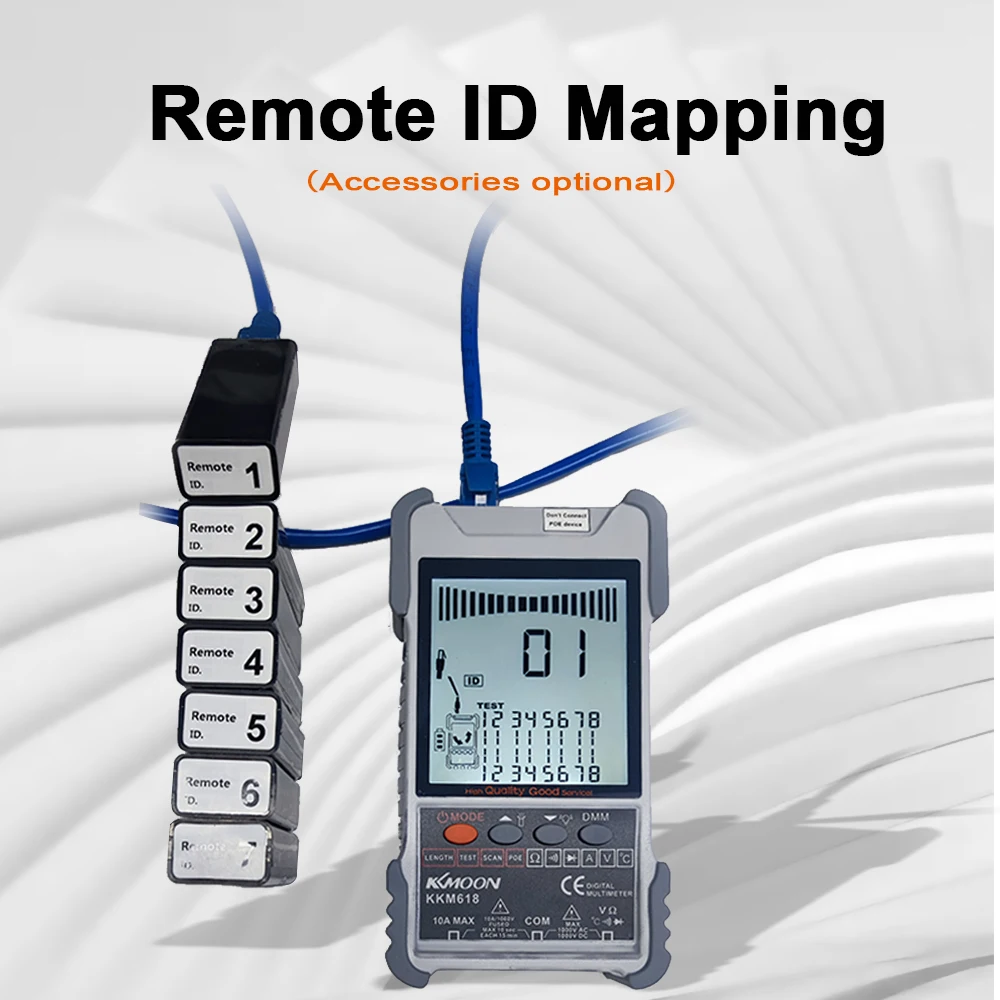

ID Mapping
Features:
With this tool, you can make your cable finder achieve ID mapping function.
3PCS/7PCS optional, you can choose the suitable suit according to your needs.
Only includes the accessory, cable finder is NOT included.
Portable size and easy to carry, you can put it into your tool bag easily.
Should be used with your cable finder.
Specifications:
Material: plastics
Quantity: 3PCS/7PCS (optional)
Package size:
3PCS: 58 * 45 * 25mm / 2.3 * 1.8 * 1.0in
7PCS: 120 * 90 * 35mm / 4.7 * 3.5 * 1.4in
Package weight:
3PCS: 39g / 1.4ounce
7PCS: 117g / 4.1ounce
3PCS Packling list:
3 * Remote ID Mapping Tool
7PCS Packing list:
7 * Remote ID Mapping Tool
