ET616/ET618 2 in 1 Network Cable Tester & Digital Multimeter Digital Backlight Analogs Digital Search POE Test Cable Pairing
ET616/ET618/ET618PRO Network Cable Tester Multimeter LCD Display with Backlight Analogs Digital Search POE Test Cable Pairing

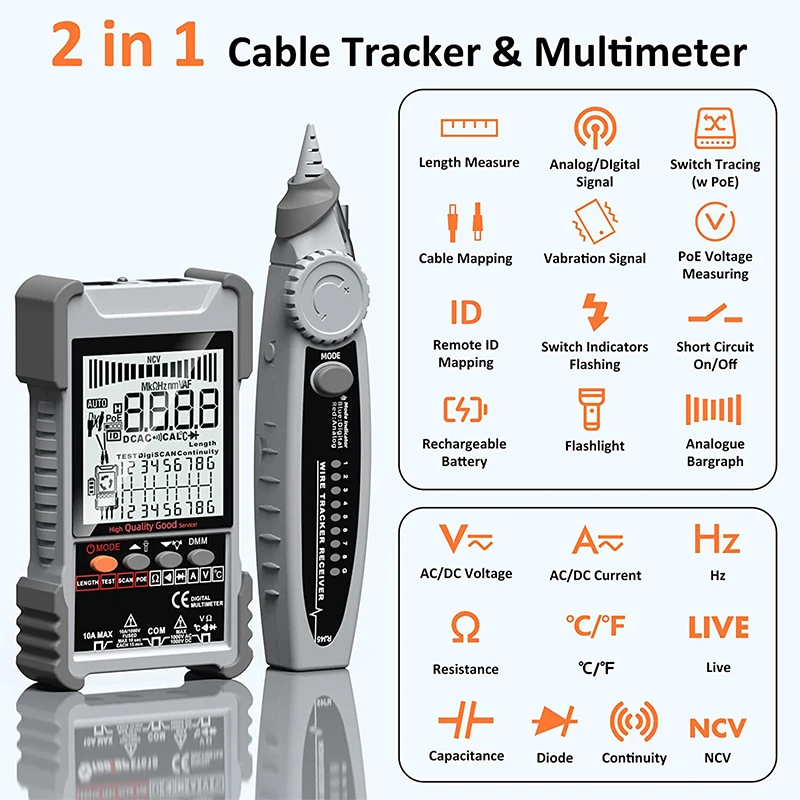

2 in 1 Network Cable Tester & Digital Multimeter: This Seesii meter combines with the network & cable tester and multimeter functions. This Multimeter function includes DC/AC current, DC/AC voltage, resistance, NCV, continuity, diode, temperature measurement.
Cable Tracing with 4 Scan Modes: Digital mode/ analog mode/ PoE mode/vibration mode, and sensitivity adjustable. you can quickly and efficiently find the target cable in large number of cables and in a noisy environment. And this function can be used in telephone systems, computers networks, BNC cables and other metal network cables.

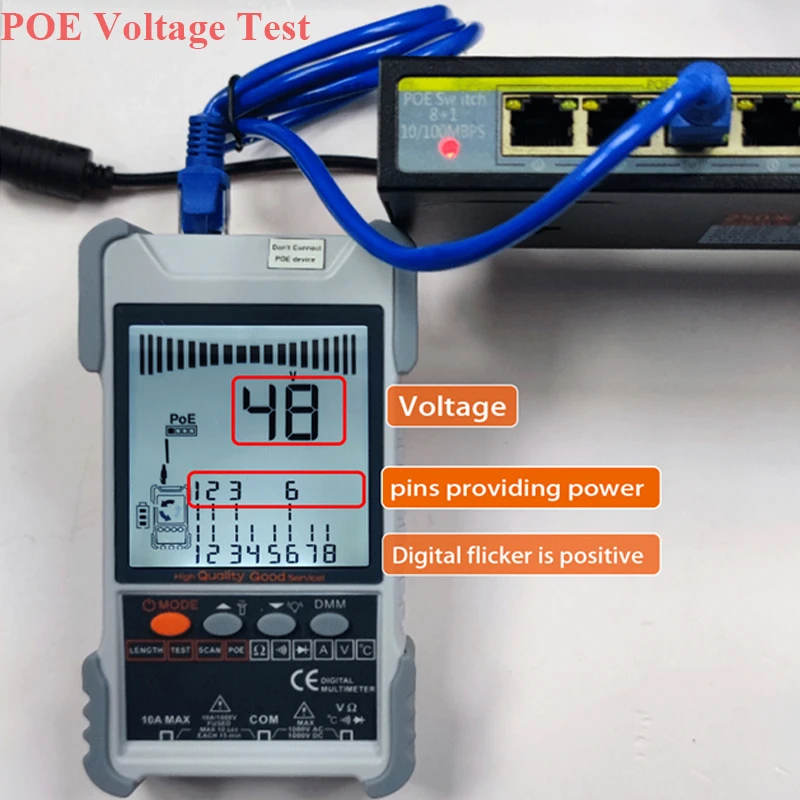

PoE Testing: PoE testing can check cable mapping polarity and voltage of PoE network switches, withstand 60VDC. Automatically detects and switches between 10M/100M/1000M modes. Includes cable tracking, short circuit test, interruption of circuit test and etc.
Cable Length Test: This RJ45 cable tester can quickly measure the length of cables, not only network cables, but also metal cables with two cores or more cores, includes telephone lines and BNC cables. The ranges of cable tester is 500M.

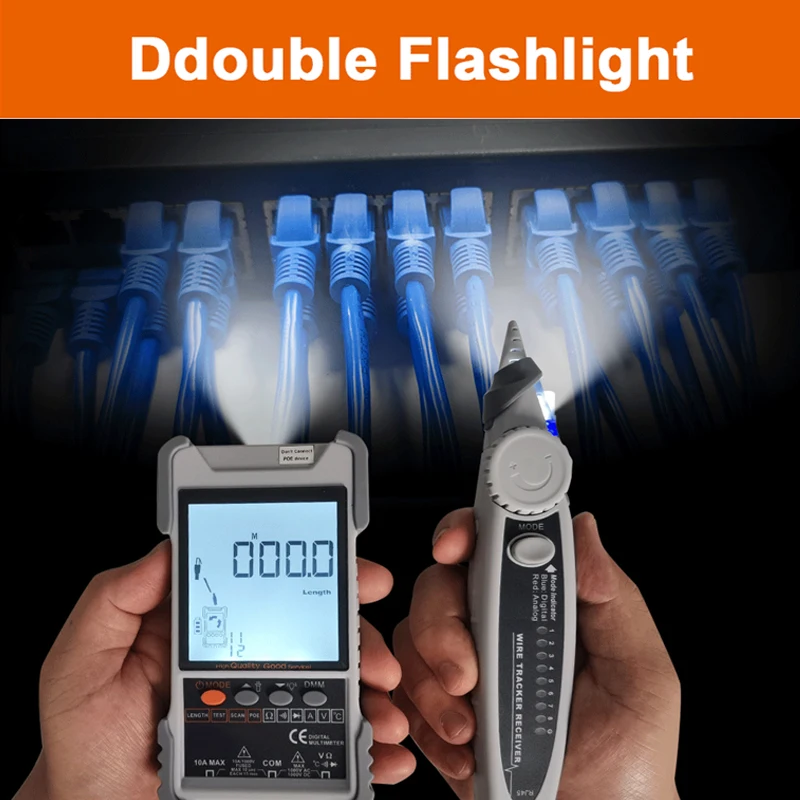

Sensitivity Adjustable & Backlight LCD Display: When receiving signal is strong, you can turn down the sound gear. Instead, you can raise the sound gear when receiving signal is weak. And this circuit tracer features a large backlight LCD display for easy reading, flexible and versatile interface. Both the transmissor and receiver feature a lamp to solve the trouble of dark work.
Updated Convenient Deign:The cable tracer also can test the integrity of the cable and the exact location of damage to a specific cable. You can go to a monochrome unlit display or bright backlight display. You can measure the cables length and manually calibrate the device. This 2 in 1 Network Cable Tester & Digital Multimeter is requirment for you.

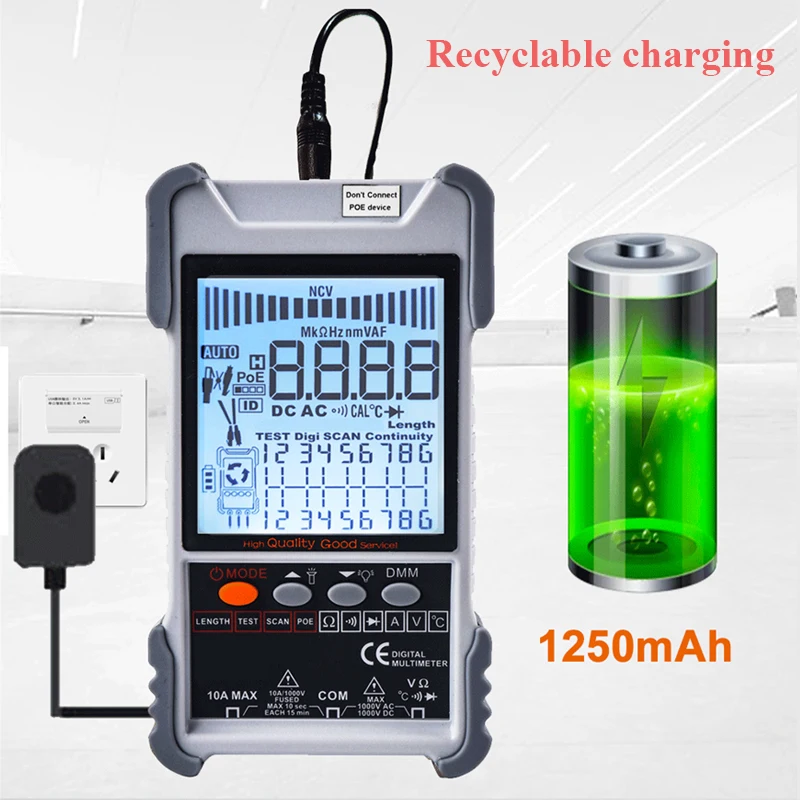

Receiver Battery：1250mAh: 1 * 9V battery (NOT INCLUDED)
Direct current voltage: 400mV~1000V±(0.8%+3)
AC Voltage: 4V~400V±(1.5%+5)
Direct current current: 1.0A~10.0A±(1.2%+4)
AC Current: 1.0A ~10.0A±(2.0%+5)
Resistance: 200Ω ~20MΩ±(2%+6)
Continuity: < 50Ω buzzers beeps
Temperature(k type): -20~1000°C±(2.0%+15)
Analogue tracing: √
Switch tracing ( w/PoE): √
Cable mapping: √
Switch indicators flashing: √
Noisy free digital tracing:
PoE voltage measuring: voltage polarity
Analogue bargraph: √
NCV detection: √
Network Cable Length Measure:500M
1 * Host
1 * Storage Bag
1 * Receiver
1 * User Manual
1 * Clip Line
1 * Network Cable
1 * Recharging Line
1 * Temperature Probes
1 * Multimeter Probes
