Lumintop LED/LEP combo 21700 flashlight
LED LEP dual head
Output: LED: Moonlight 1 LM; Low: 75LM, Med: 500LM, High: 1050LM; Turbo:2800LM
LEP: Moonlight: 60LM; Low: 70LM; Med: 130LM; High: 220LM: Turbo: 280LM.
Combo: Moonlight: 60LM. Low: 120LM; Med: 330LM; High:1150LM; Turbo: 2750LM.
LED:Moonlight 40D; Low: 20H, Med: 3hours55min, High: 1 Min30S+3 hours 4 min; Turbo:45s+3H 30Min
LEP: Moonlight:10H; Low: 8H; Med: 3Hours 55Min; High: 3hours 40min: Turbo: 18Min+2H50Min.
Combo: Moonlight: 9H. Low: 6h; Med: 3H 30min; High:1Min30S+3H20Min; Turbo: 45S+3H 15min.
Intensity: LED: 10220cd/LEP:342000cd
Distance: LED: 202 meters; LEP:1170 meters
Net weight: 205g(when not including battery)
Battery: support 1pcs 21700 battery, battery max length 70.5mm
Rechargeable: USB TYPE-C, max charging current 2A.
Discharge: USB TYPE-C, max discharging current 2A.
Protection: Overcharge protection; Over-discharge protection; Reverse protection; Over –heat protection, Low voltage protection.
General mode: Low-Med-High(with memory)
Hidden mode: Moonlight, Turbo
1. ON/OFF: Fully press the switch for ON/OFF.
2. Output change: Press and hold the switch from ON will change the outputs from Low-Med-High, release the switch then press and hold it again will shift the outputs from High-Med-Low.
3. Rapid High: Two clicks from OFF.
4. Moonlight: Press and hold the switch for 1 second from OFF. Press and hold the switch again will cycle modes from the general mode.
5. Turbo: Two quick clicks from ON. Another two clicks will return to te previous mode. Two clicks the switch and hold the second from OFF will momentarily activate the Turbo until the button is released.
6. Light source shifting: Three click from ON/OFF will cycle the light source through LED-LEP-Combo.
7. Battery check: Four clicks the switch from OFF. Blink 3 times then another 7 times, so it's 3.7V
8. Lock-out/Unlock: 5 clicks from OFF. Momentary Low is available when pressing the switch
9. Switch back-lit light ON/OFF: Continuously 7 clicks from OFF.

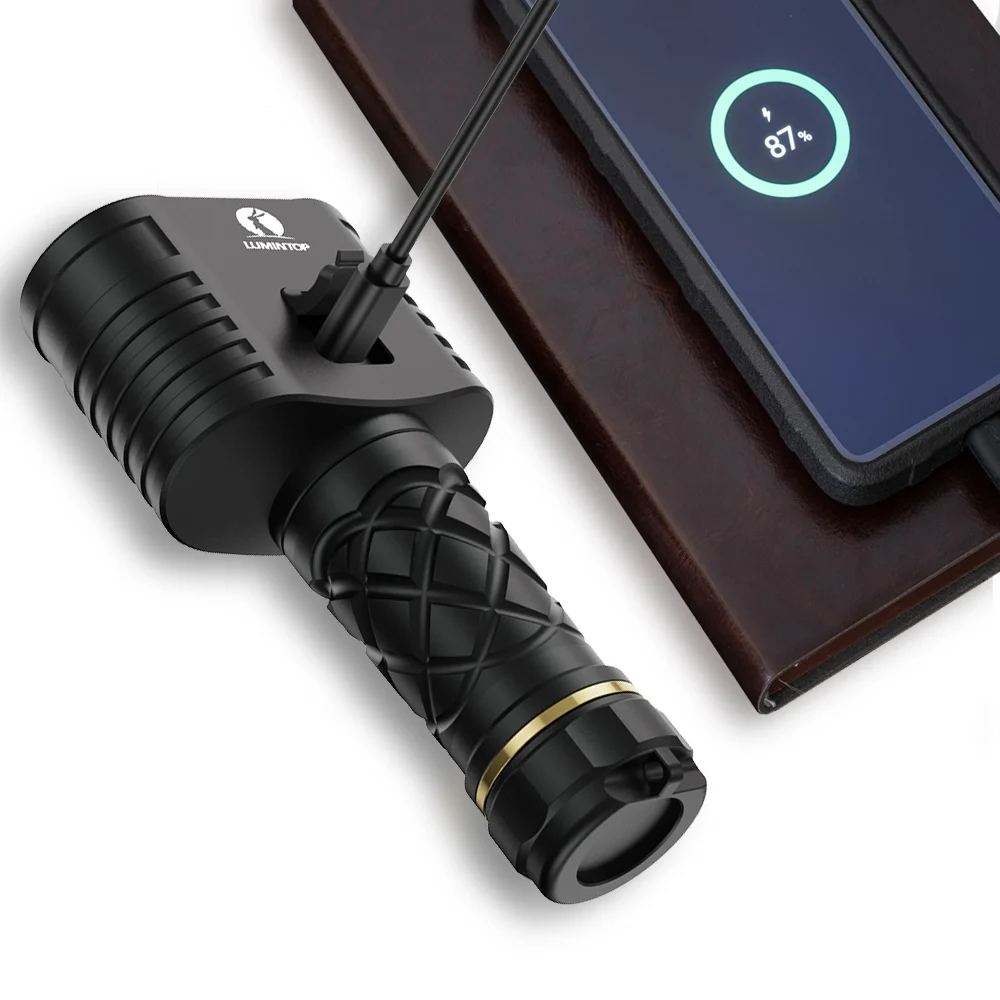

USB TYPE-C Charge/Discharge Function
Max 5V/2A charging/discharge current with built-in charging indicator.
Red: In the charging process
Green: Fully charged
Battery: Use one reputable 21700 Li-ion battery with a max length of 70.5mm , an unprotected battery, such as Samsung NIR21700 is recommended.
